25KM 900M Outdoor 5.8G High Power Ultra-Long Range Wireless Bridge

25KM 5.8G 900M Ultra-Long Range Wireless Bridge with QCA9563+QCA9882+QCA8334 chipset. 32dBi external parabolic antenna, 867Mbps, 23dBm, 25KM LOS transmission. Dual gigabit WAN/LAN ports, 24-48V PoE & DC12-24V, power＜15W.

Wireless Bridge

25KM 900M Outdoor 5.8G High Power Ultra-Long Range Wireless Bridge

25KM 5.8G 900M Ultra-Long Range Wireless Bridge with QCA9563+QCA9882+QCA8334 chipset. 32dBi external parabolic antenna, 867Mbps, 23dBm, 25KM LOS transmission. Dual gigabit WAN/LAN ports, 24-48V PoE & DC12-24V, power＜15W.

SKU
WB860H-32
Quantité minimum
2
Délai
In Stock
OEM / ODM
OEM / ODM disponible
Poser une question sur ce produit WhatsApp

Caractéristiques techniques

Main Chip QCA9563 + QCA9882 + QCA8334
Frequency Band 5.150GHz ~ 5.850GHz
Wireless Rate Max 867Mbps
Ethernet Ports 1 × WAN port ,1 × LAN port
Max Transmission Distance Up to 25 KM

Présentation du produit

  • ✅ 25KM ultra-long range 5.8G 900M wireless bridge, Chipset: QCA9563+QCA9882+QCA8334
  • ✅ 128MB RAM + 16MB Flash for stable high-speed long-distance backhaul

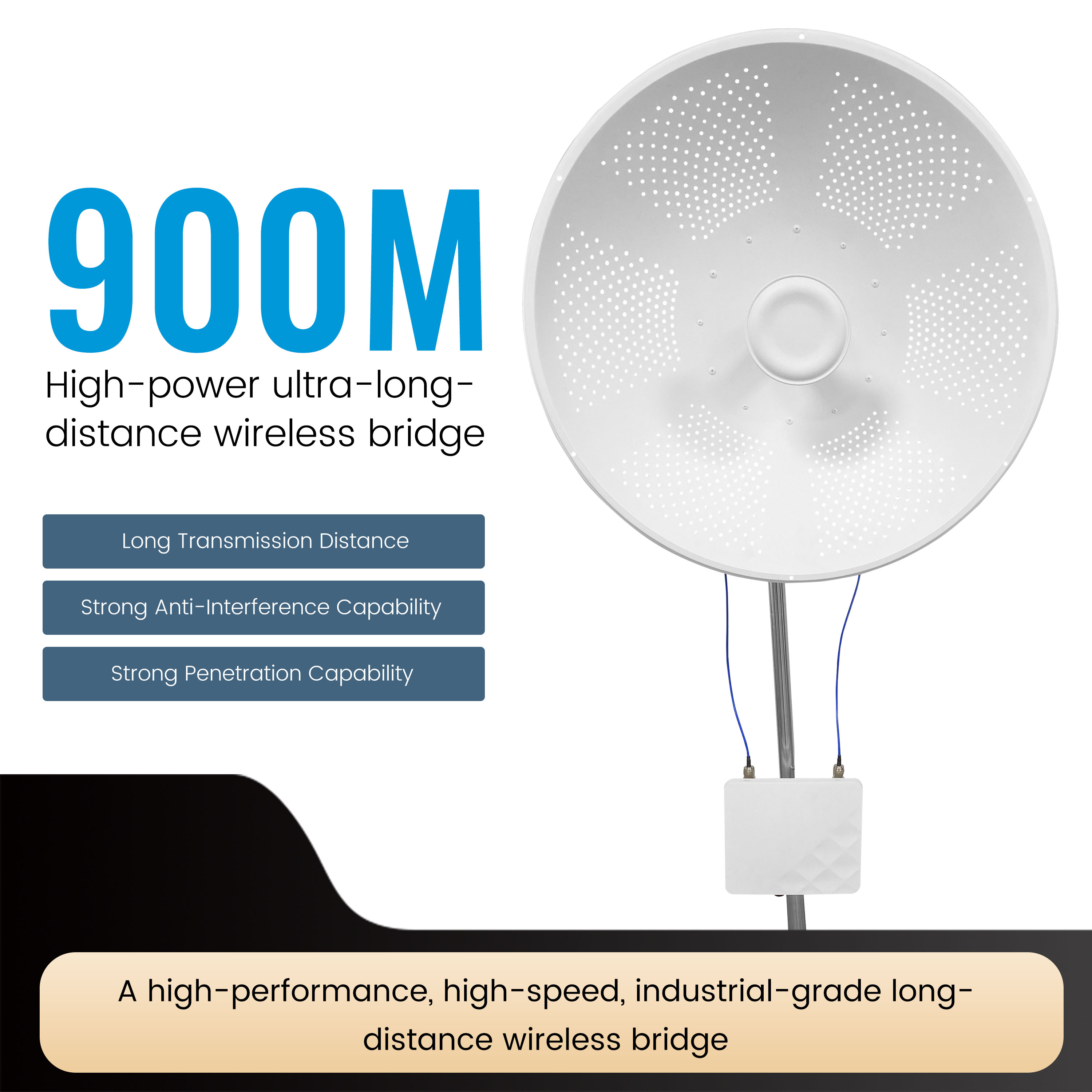

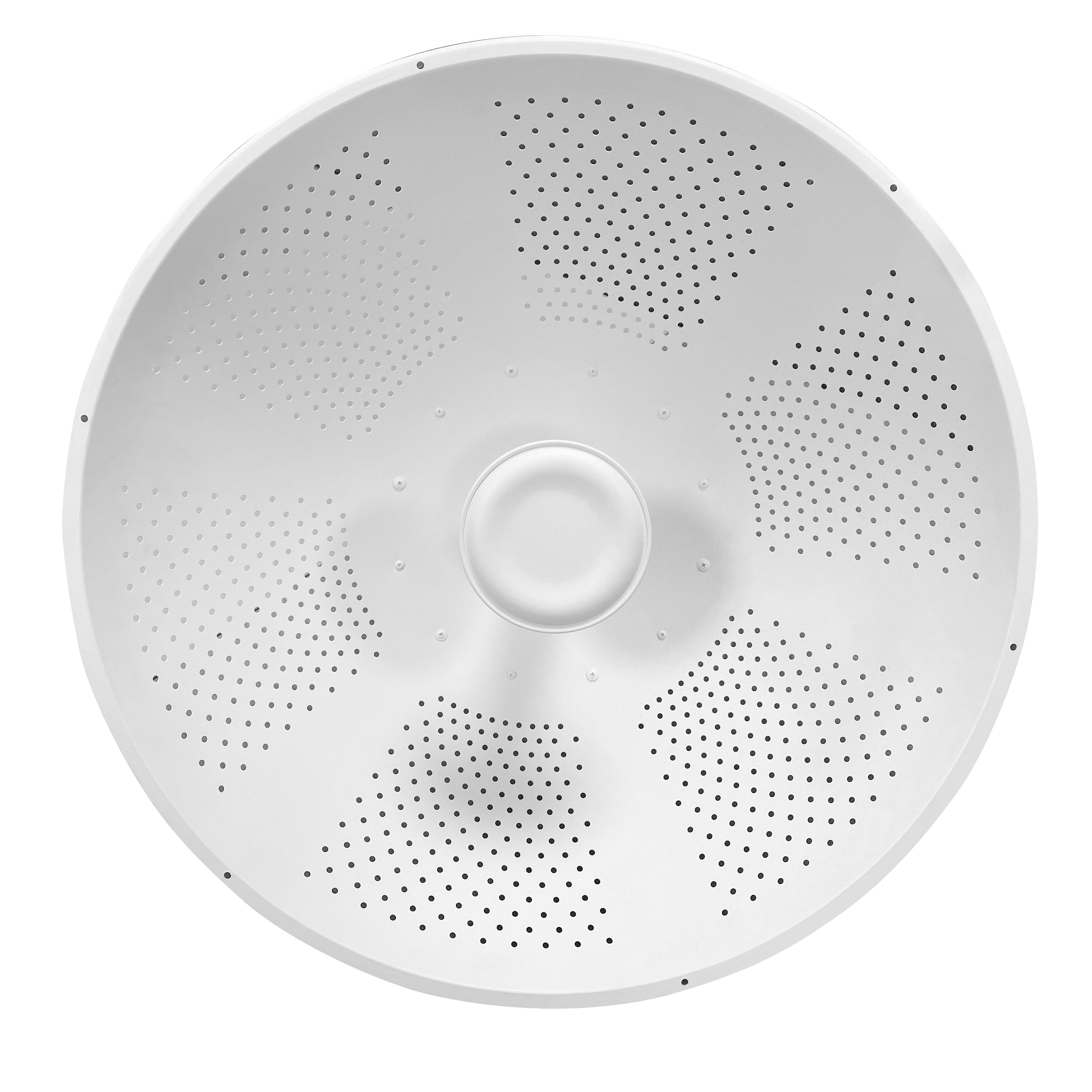

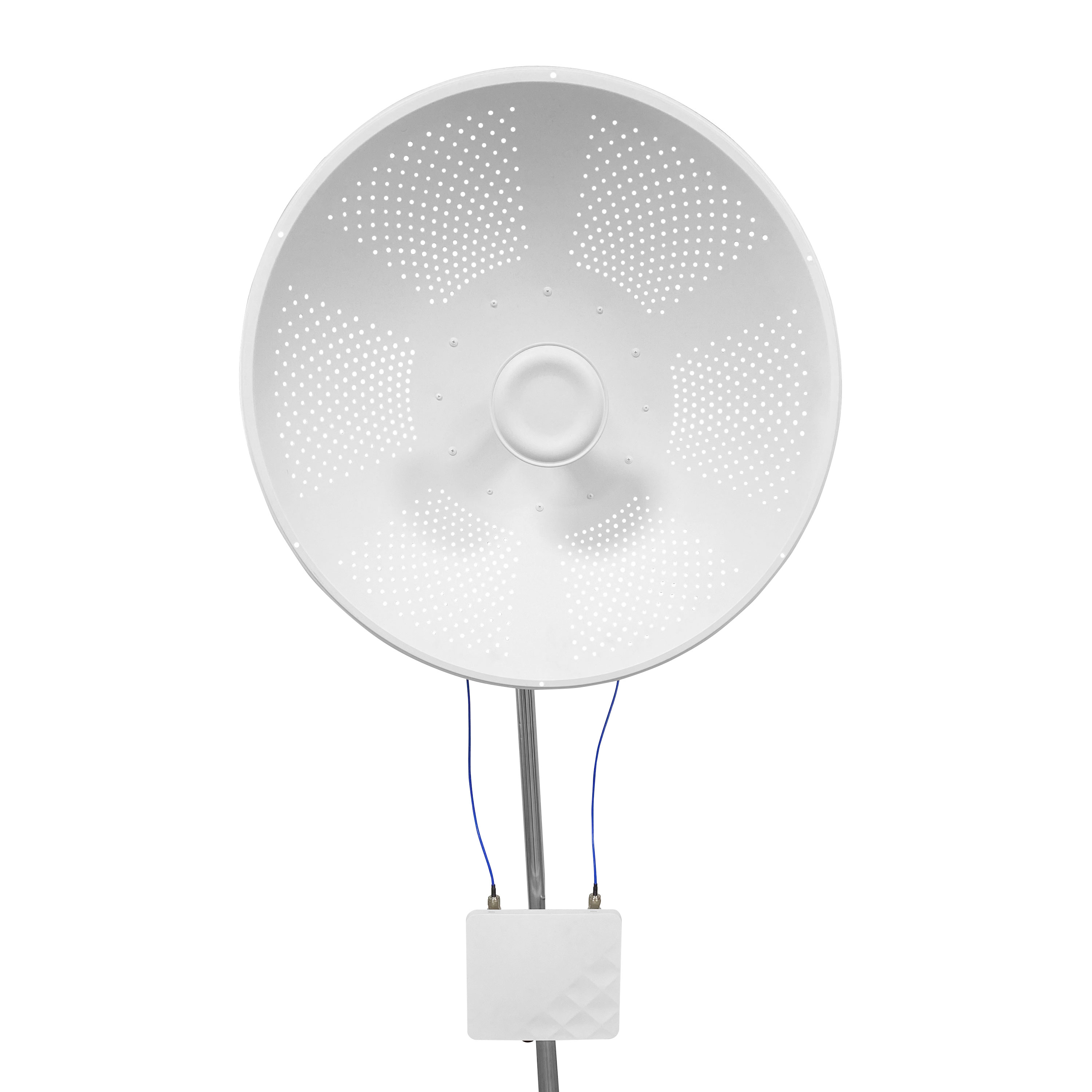

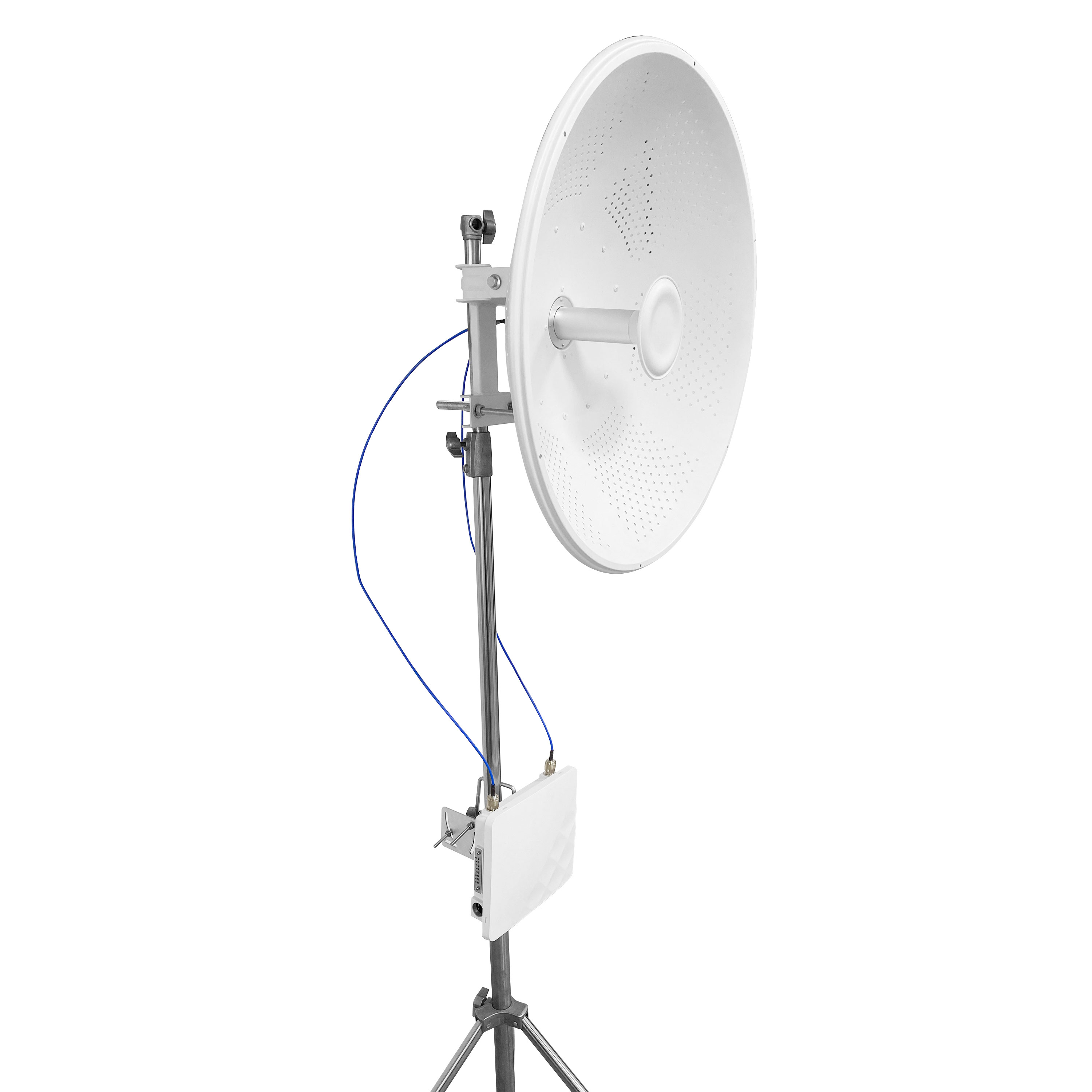

  • ✅ External 32dBi dual polarized parabolic high-gain antenna
  • ✅ Wireless standard IEEE 802.11a/n/ac, max wireless rate:867Mbps
  • ✅ Transmit power:23dBm, LOS transmission distance up to 25KM
  • ✅ 1× Gigabit WAN +1× Gigabit LAN adaptive ethernet ports
  • ✅ Power supply: 24-48V Passive PoE & DC 12-24V
  • ✅ Low power design, max power consumption less than 15W
  • ✅ 1× RESET hardware button for quick reset
  • ✅ Designed for WISP long-distance backbone and point-to-point link projects
